Finishing the Stormtrooper Helmet: The Sanding & Priming Grind
Sanding isn't the most glamorous part of prop making, but it's where the magic happens. Moving from a glued assembly of 3D-printed panels to a glass-smooth surface takes patience, body filler, and elbow grease.
Post
If you ask ten prop makers what their least favorite part of the build is, nine of them will say sanding. But if you ask them what the most important step is, they'll give you the exact same answer.
Today was all about the finishing grind on the Stormtrooper helmet. When we left off yesterday, the helmet was fully assembled and structurally sound, but the seams were rough and the 3D print lines were visible across the curved surfaces. A high-gloss Imperial finish requires a perfectly smooth base, so there are no shortcuts here.
Here is the workflow for turning raw plastic into a glass-smooth canvas
1. The First Sand: I started with a rough 120-grit sandpaper to knock down the high spots, plastic weld ridges, and any dried CA glue squeeze-out. This gives the surface a clean, uniform texture.
2. Body Filler (Bondo): To hide the seams entirely, I applied a thin layer of body filler across the joints. The key here is to spread it as smoothly as possible to minimize the amount of sanding required once it cures.
3. Block Sanding: Once the filler was dry, I went to work with 220-grit sandpaper. Block sanding—using a sanding block rather than just my hands—is crucial here because it ensures the surfaces stay flat and flat areas don't end up wavy.
4. Filler Primer: After wiping away all the dust, I sprayed a heavy coat of high-build filler primer. This type of primer is designed to settle into the tiny layer lines of the 3D print. Once dry, it reveals any remaining low spots or scratches that need extra attention.
5. Spot Putty: I used glazing spot putty to fill in the minor pinholes and tiny imperfections highlighted by the primer coat.

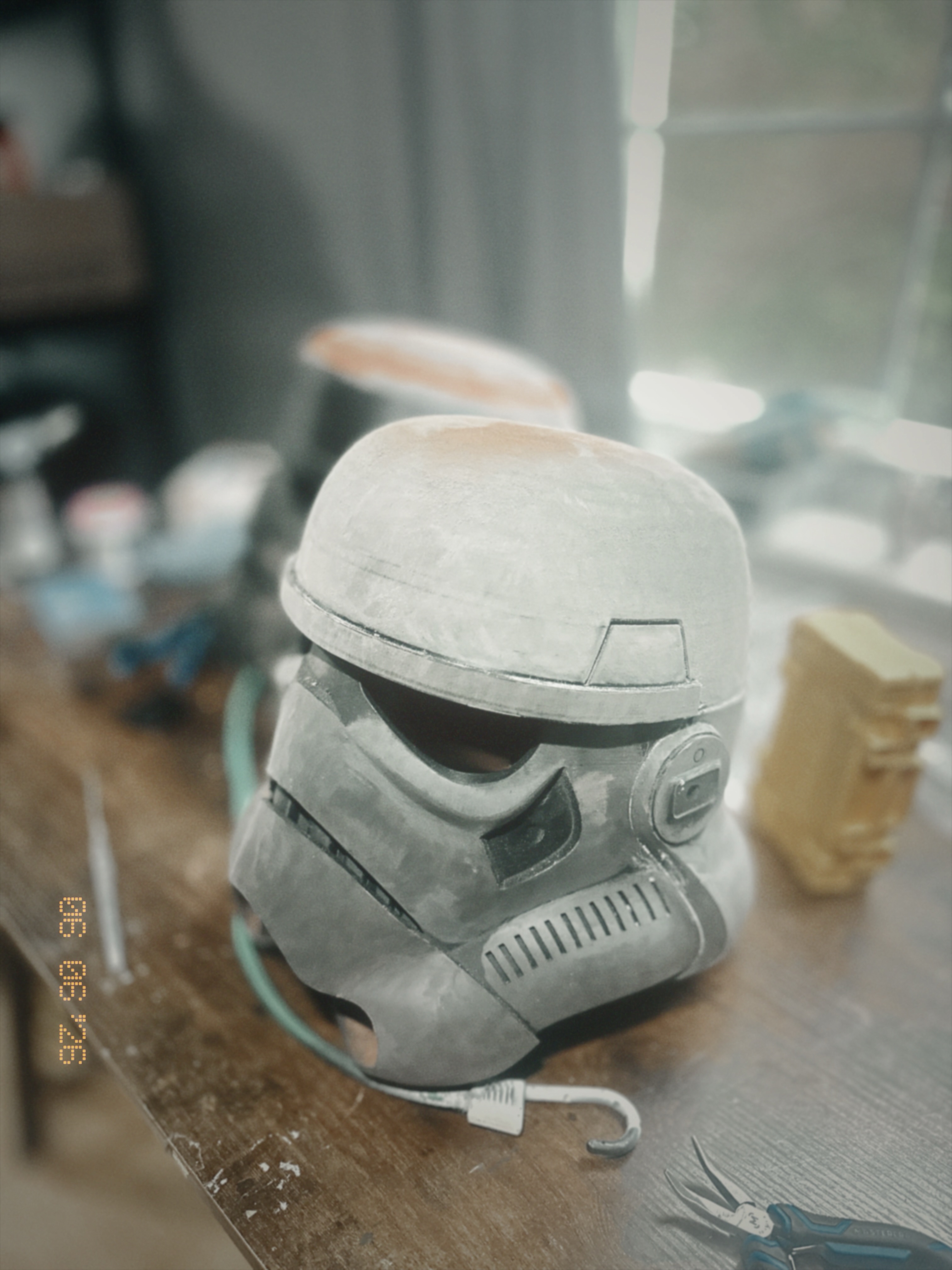

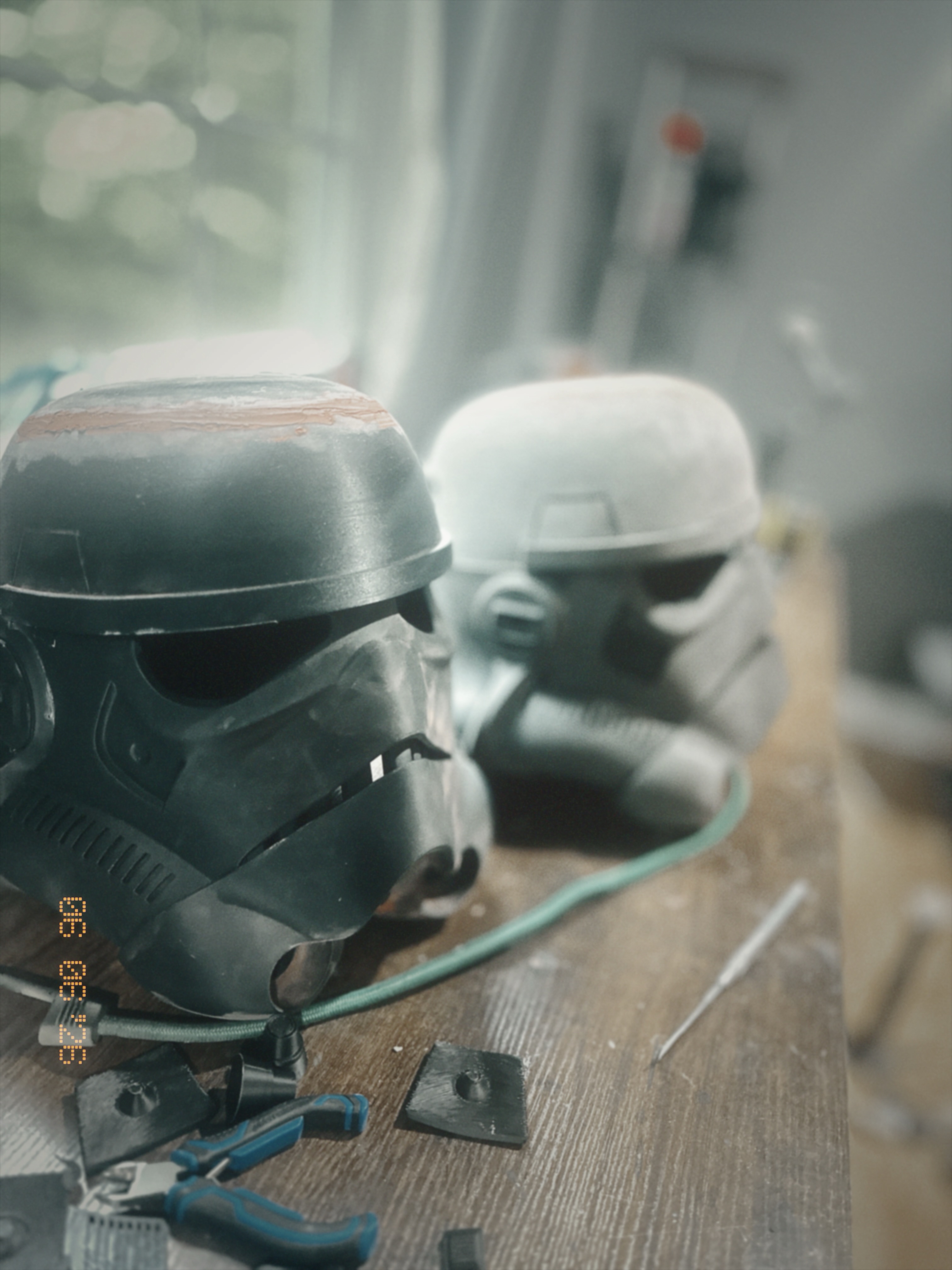

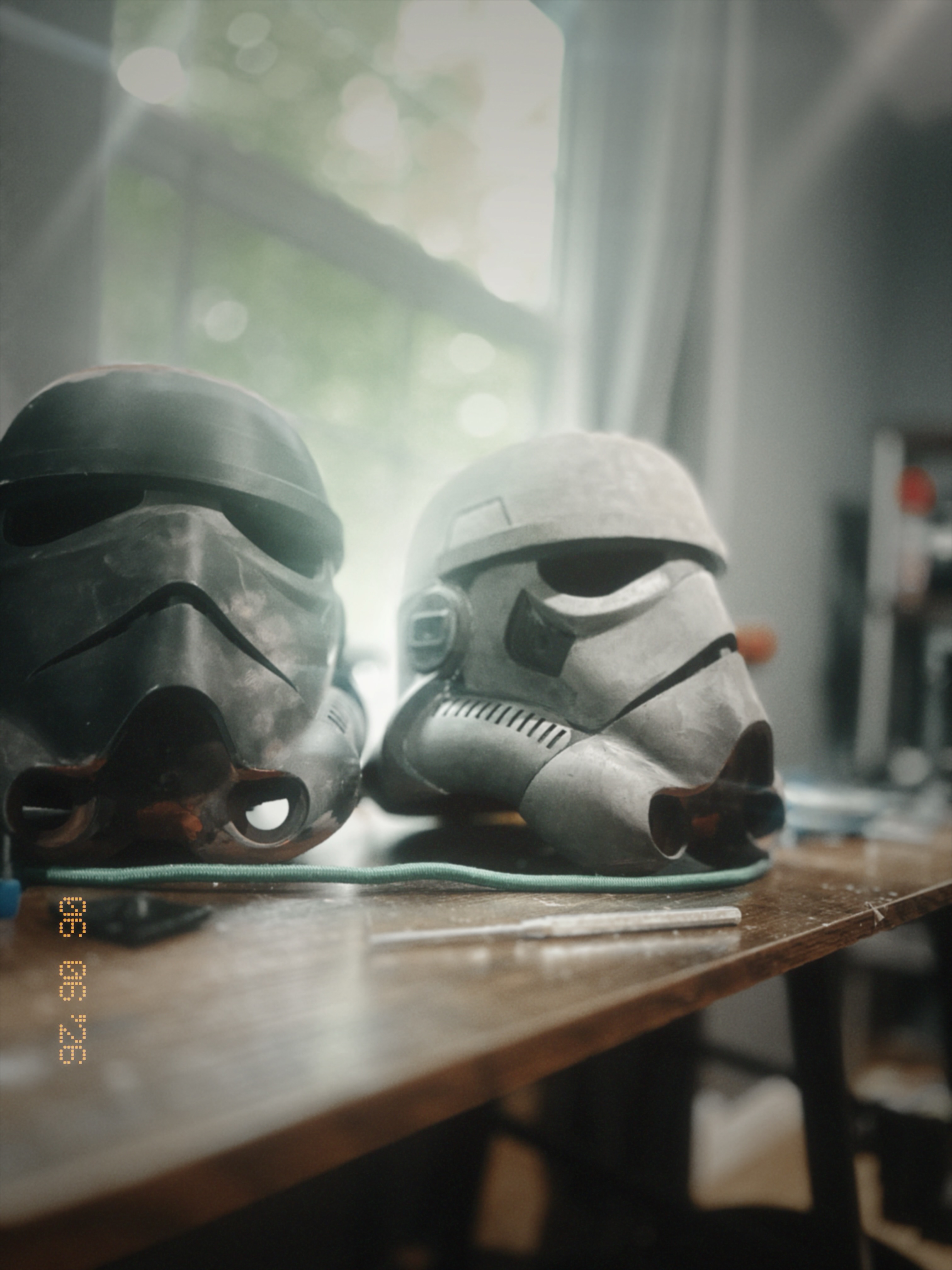

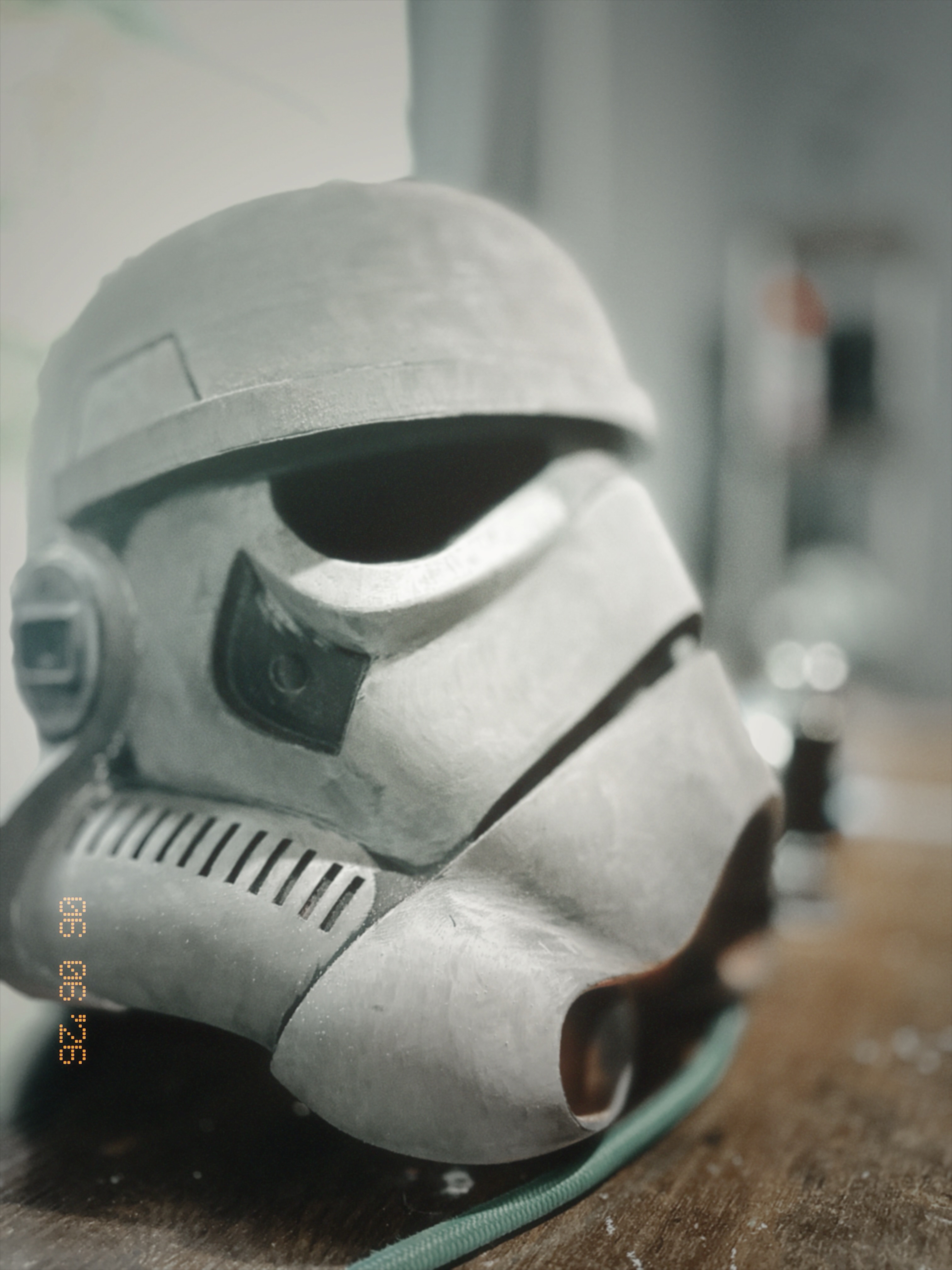

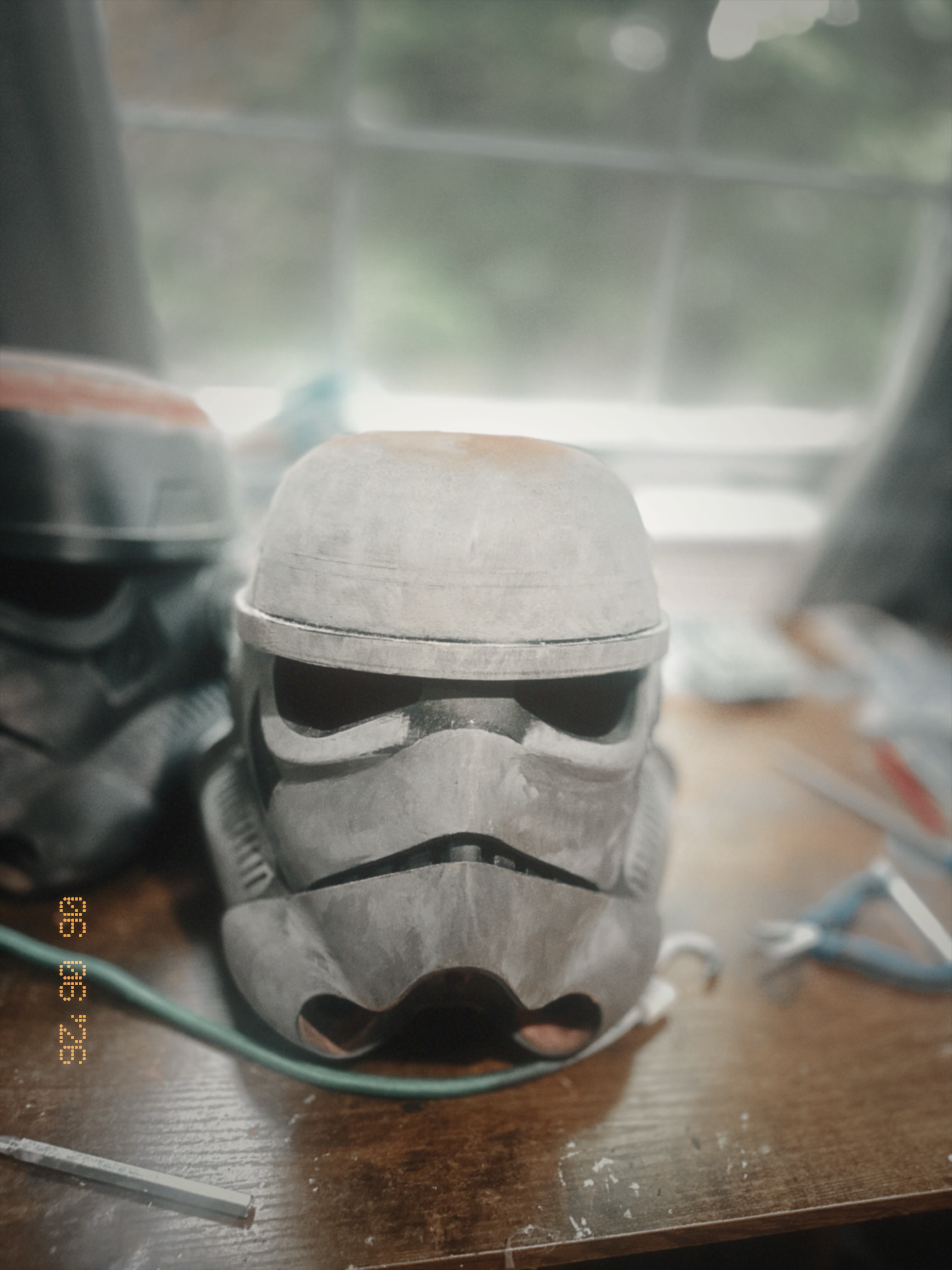

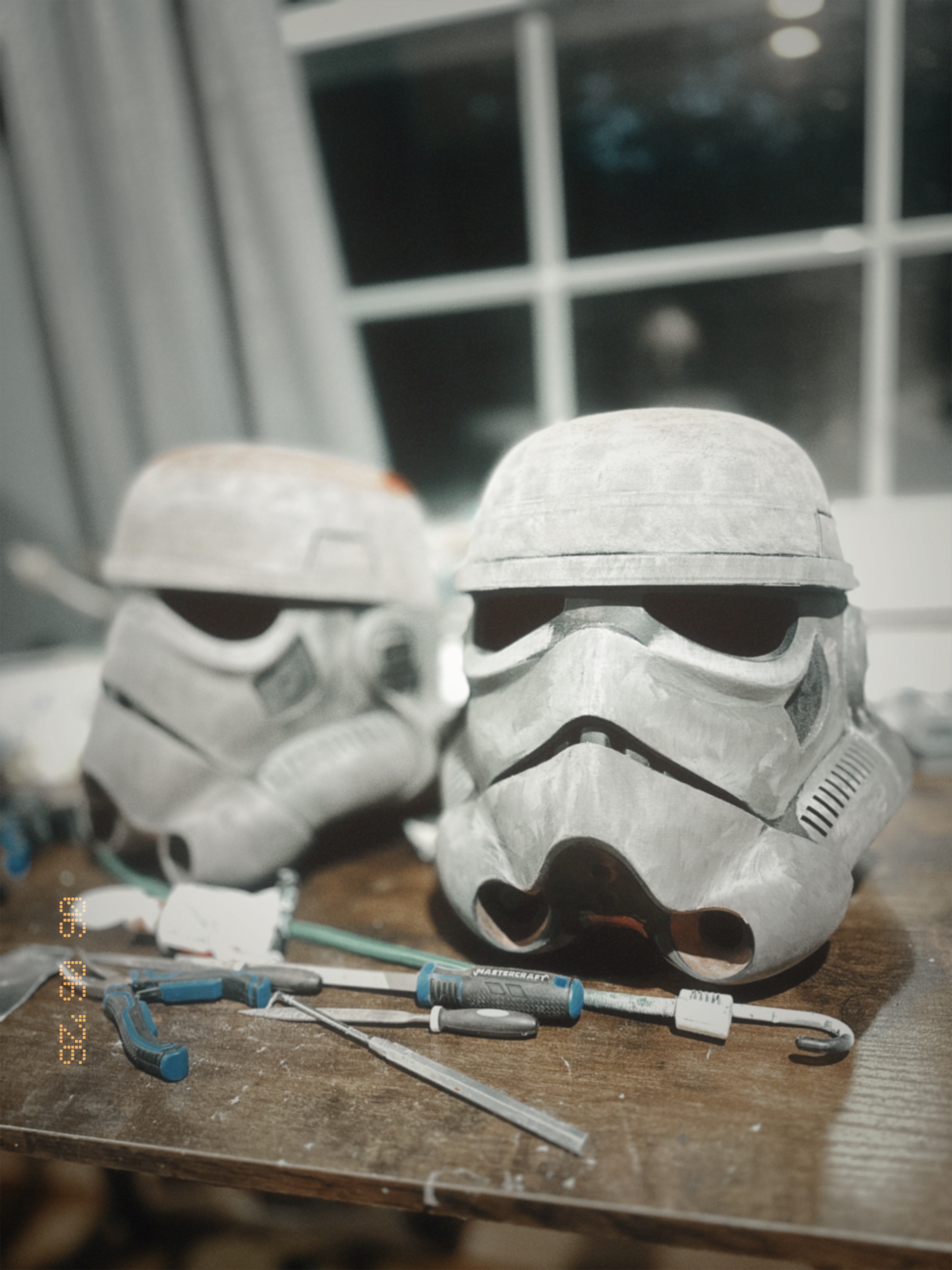

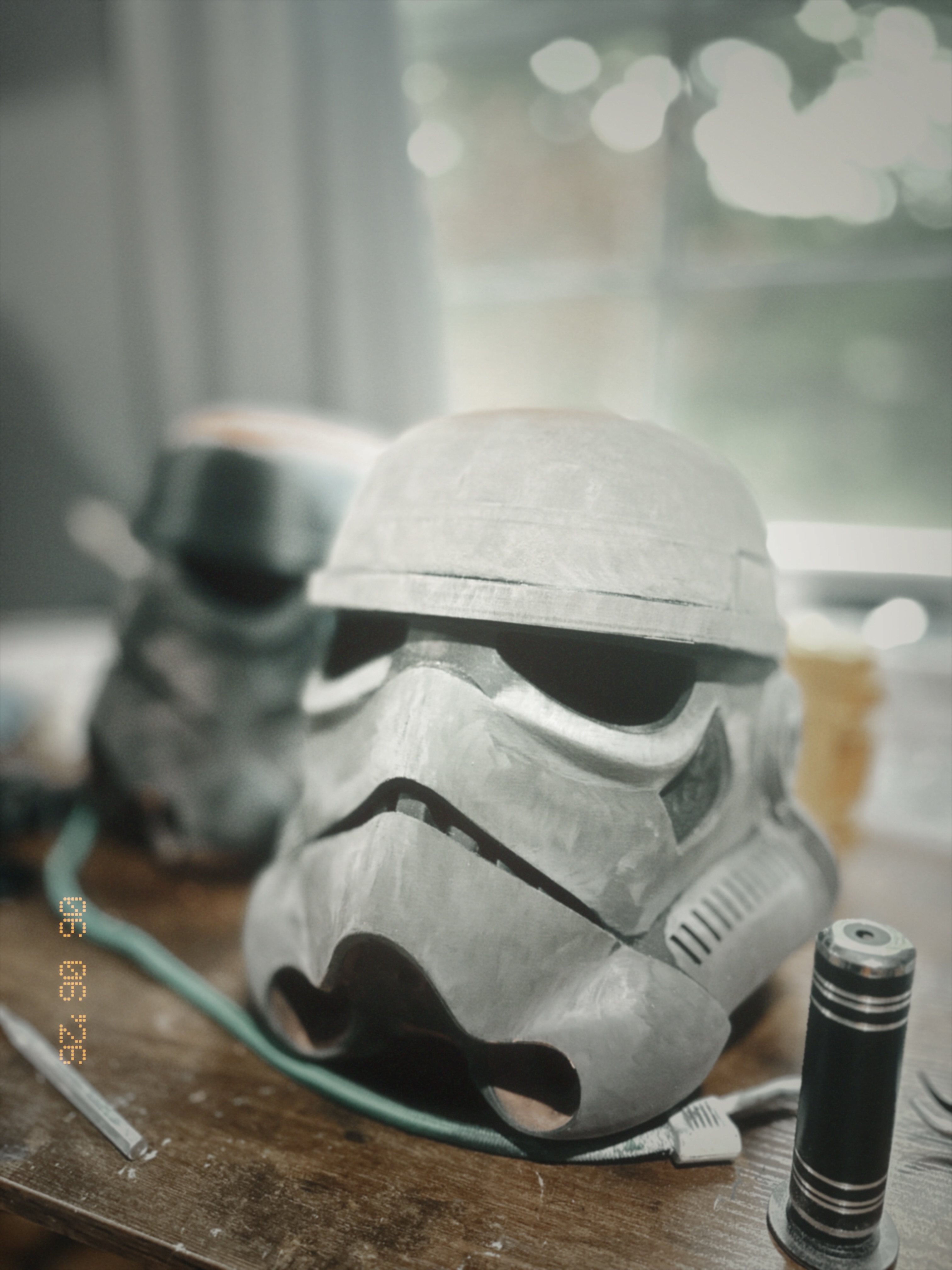

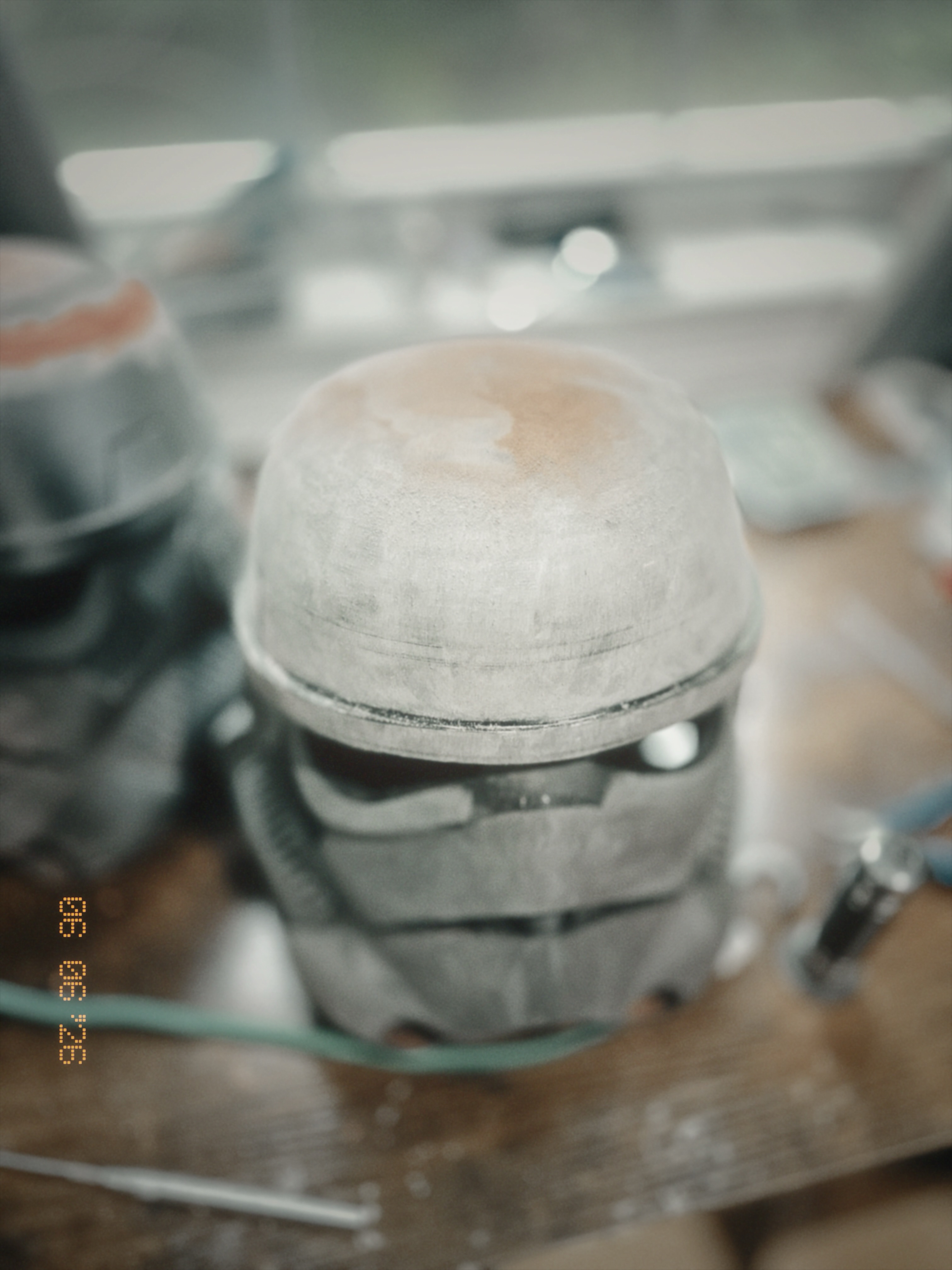

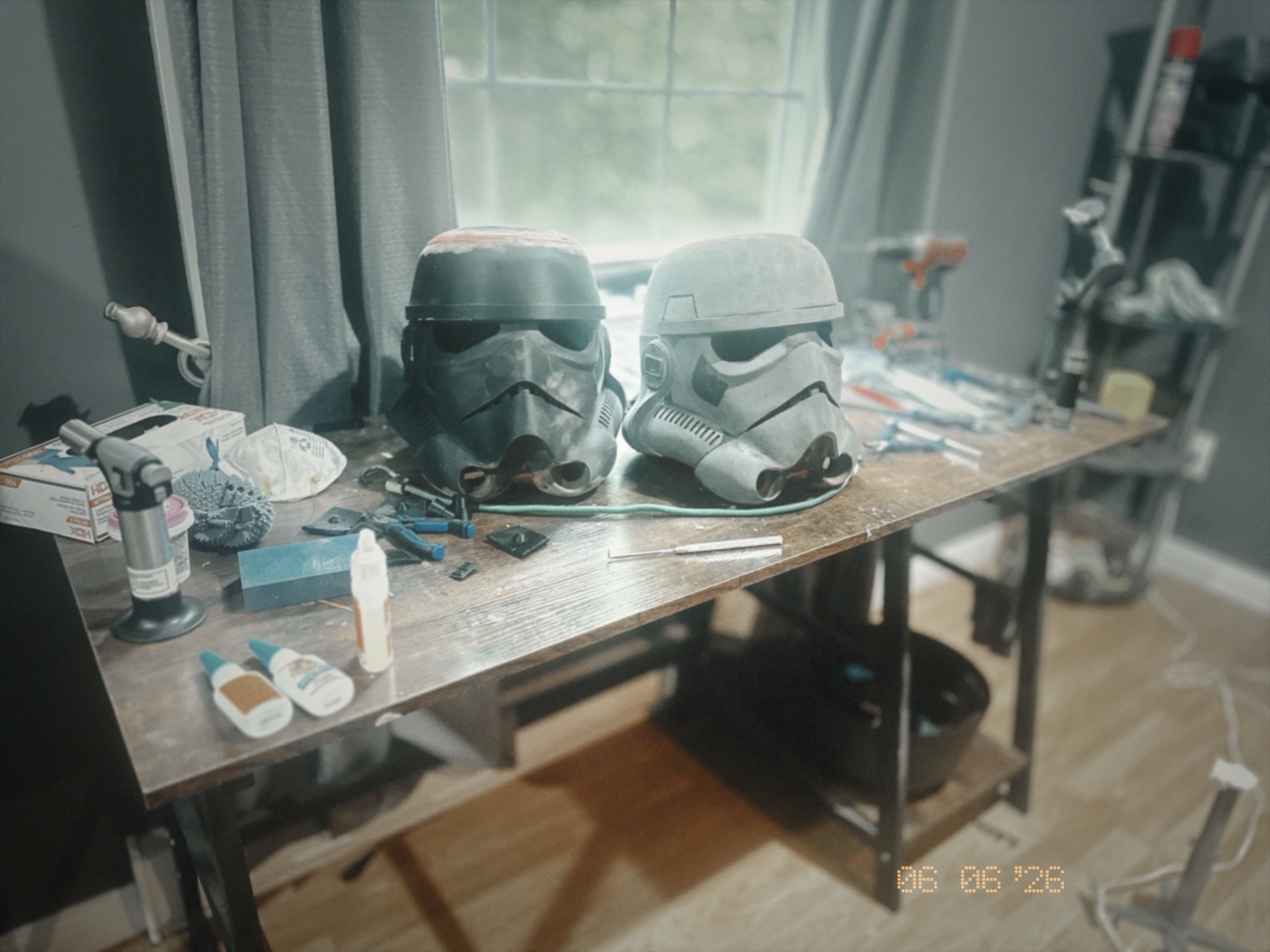

We went through two full rounds of priming and sanding today. The helmet is currently sitting in the booth with its final primer coat, looking incredibly clean. The seams have completely disappeared, and the transition between the printed panels is seamless.
Tomorrow, we move to a different universe on the workbench as we start assembly on the Helldivers 2 helmet, but the Stormtrooper is primed, prepped, and ready for its glossy white base coat and hand-painted details.
Check out the sanding photos to see the progress, and let me know if you have any questions about the sanding workflow!
