Stormtrooper Helmet Assembly: Glueing the Pieces of an Icon
The monthly helmet build challenge is officially underway! We start with the critical first step: aligning, welding, and glueing the raw 3D-printed Stormtrooper segments into a solid, wearable helmet shell.
Post
The monthly helmet build challenge has officially kicked off here at Fable Forge Props, and the very first project on the bench is the classic Star Wars Stormtrooper helmet.

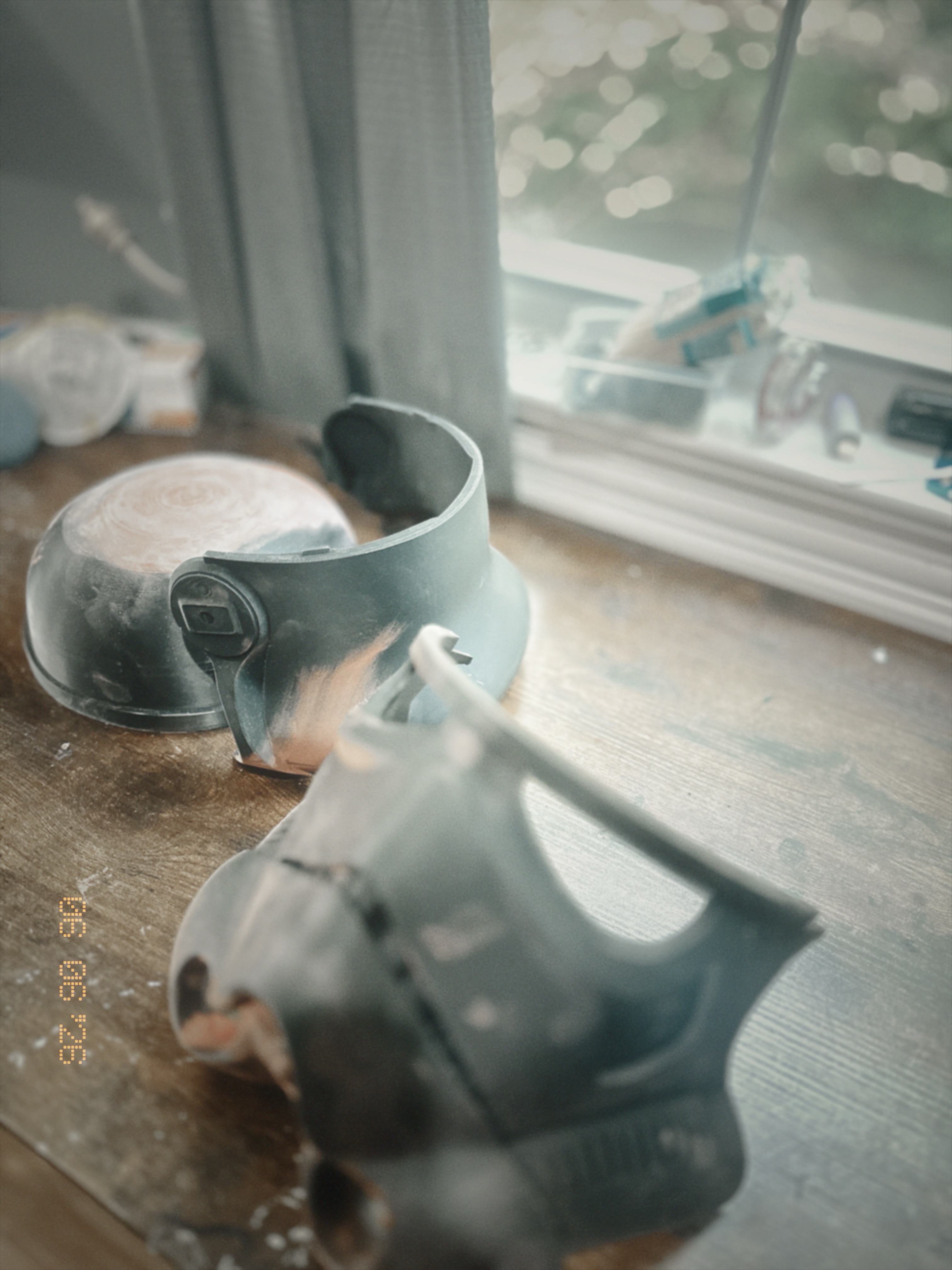

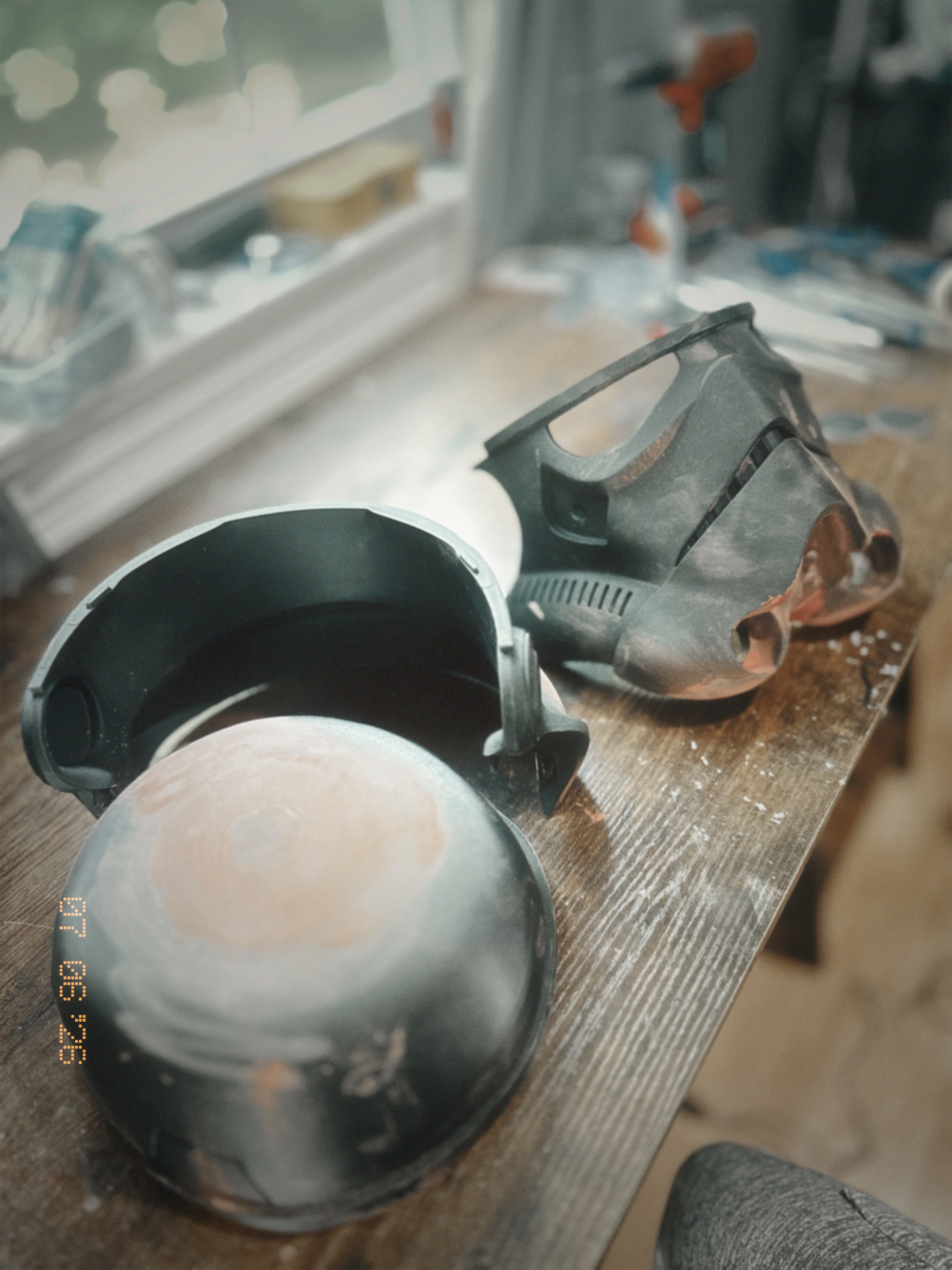

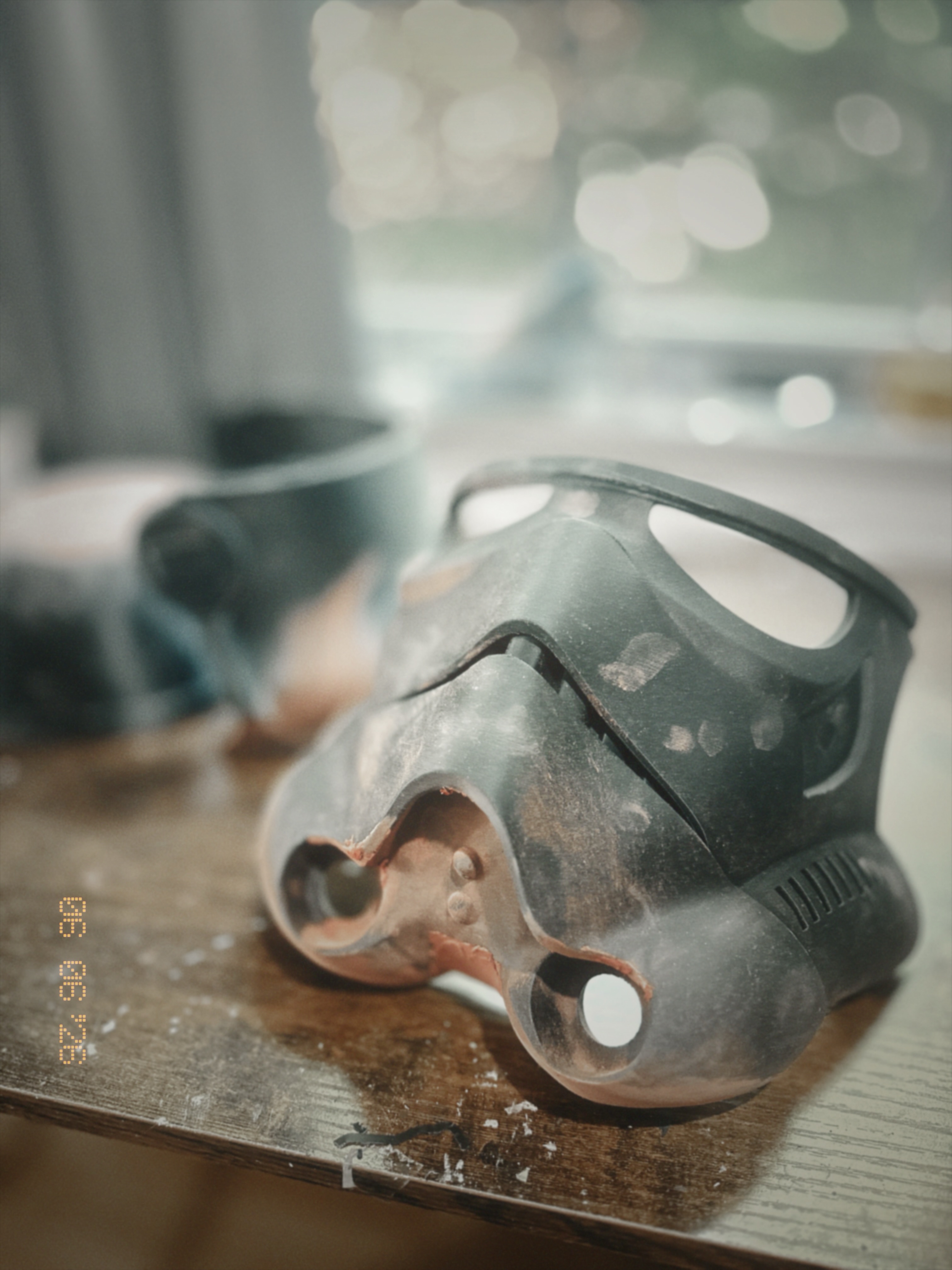

Before you can get to the fun part of painting and weathering, you have to start at the foundation: assembly. Because helmet prints are quite large, they are usually split into multiple segments to fit on a standard 3D printer bed. For this classic helmet, the print is broken down into the main dome, the faceplate, the back panel, the neck trim, and the ears.
Getting a multi-part print to align perfectly requires patience and a good game plan. Even small alignment issues at the beginning will compound as you add more pieces, leaving you with gaps that are a nightmare to fill later.
Here's how the assembly went down in the workshop
1. Dry Fitting: Before touching any glue, every piece was dry-fitted together and held with masking tape. This lets me check the alignment lines and see if any edges need light sanding to sit flush.
2. Aligning & Tacking: I started by aligning the main dome pieces. I used Cyanoacrylate (CA) glue (superglue) with an activator spray for a quick tack bond. The activator cures the glue in seconds, which is essential when holding curved plastic parts in place by hand.
3. Reinforced Seams: CA glue is great for holding things in place, but it can be brittle on its own. To give the seams structural strength, I went back over the inside seams with a plastic welder (a soldering iron dedicated to melting PLA). Welding the seams together creates a permanent, solid plastic bond that won't crack if the helmet is dropped or handled during cosplay.

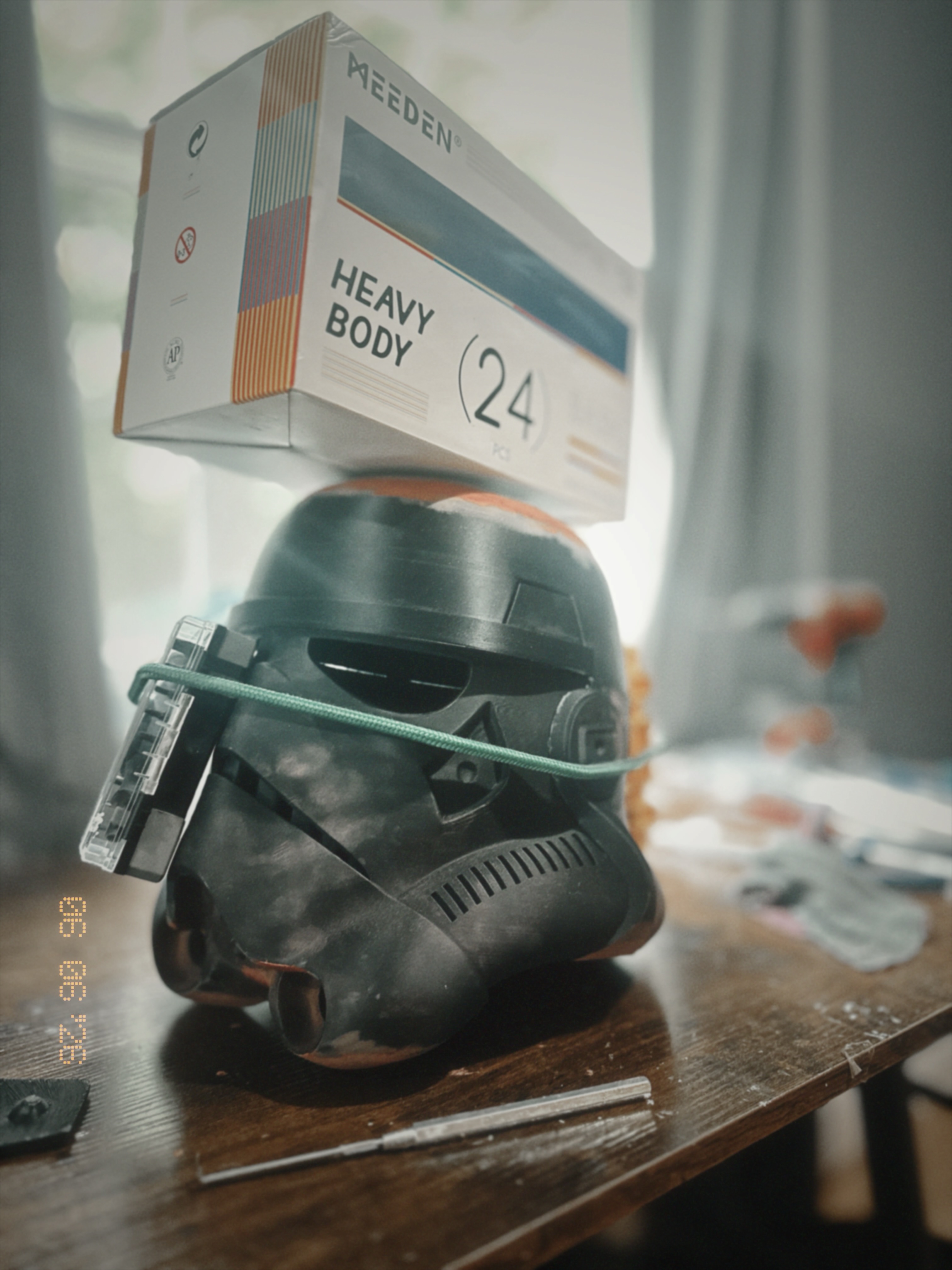

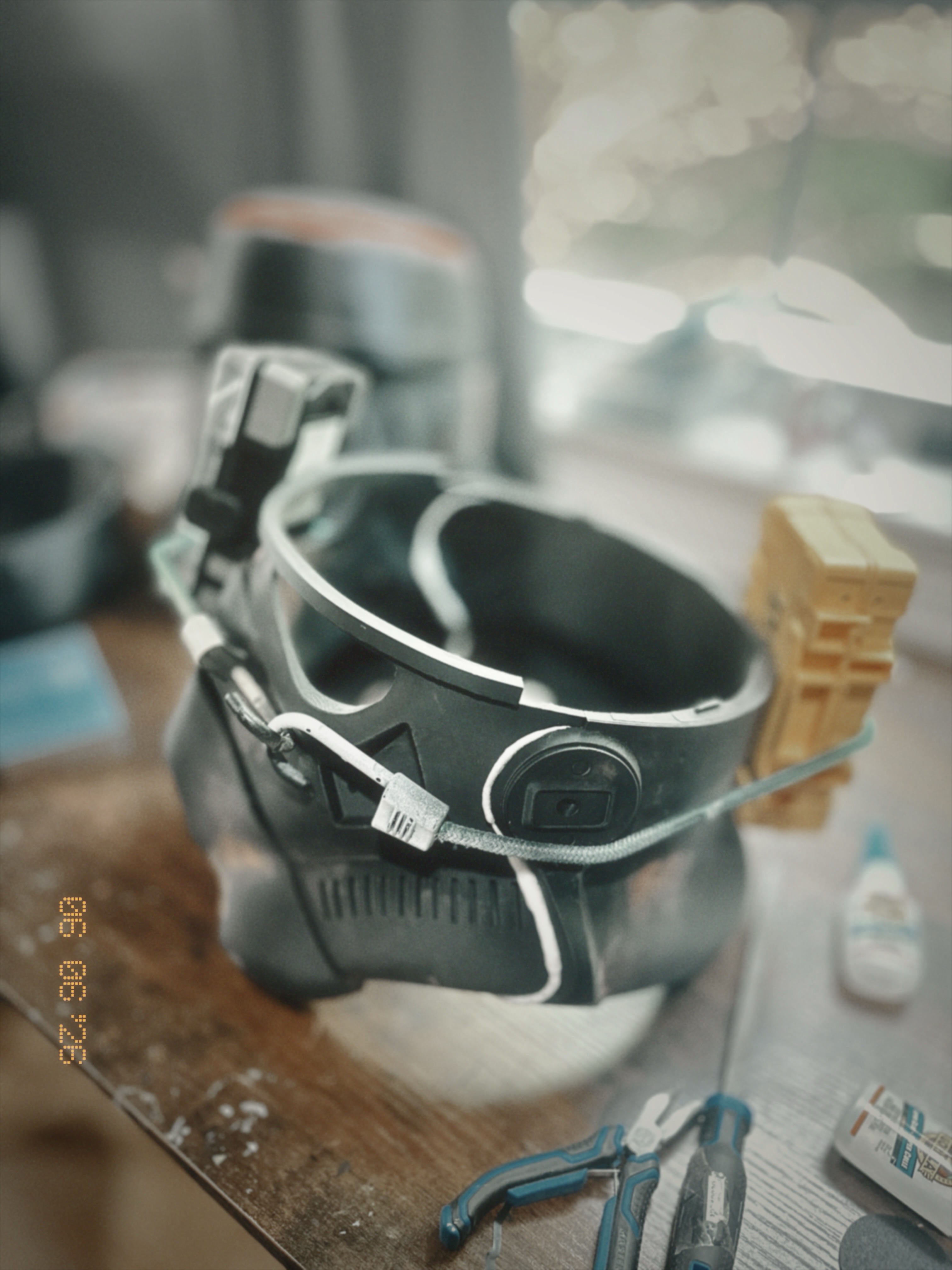

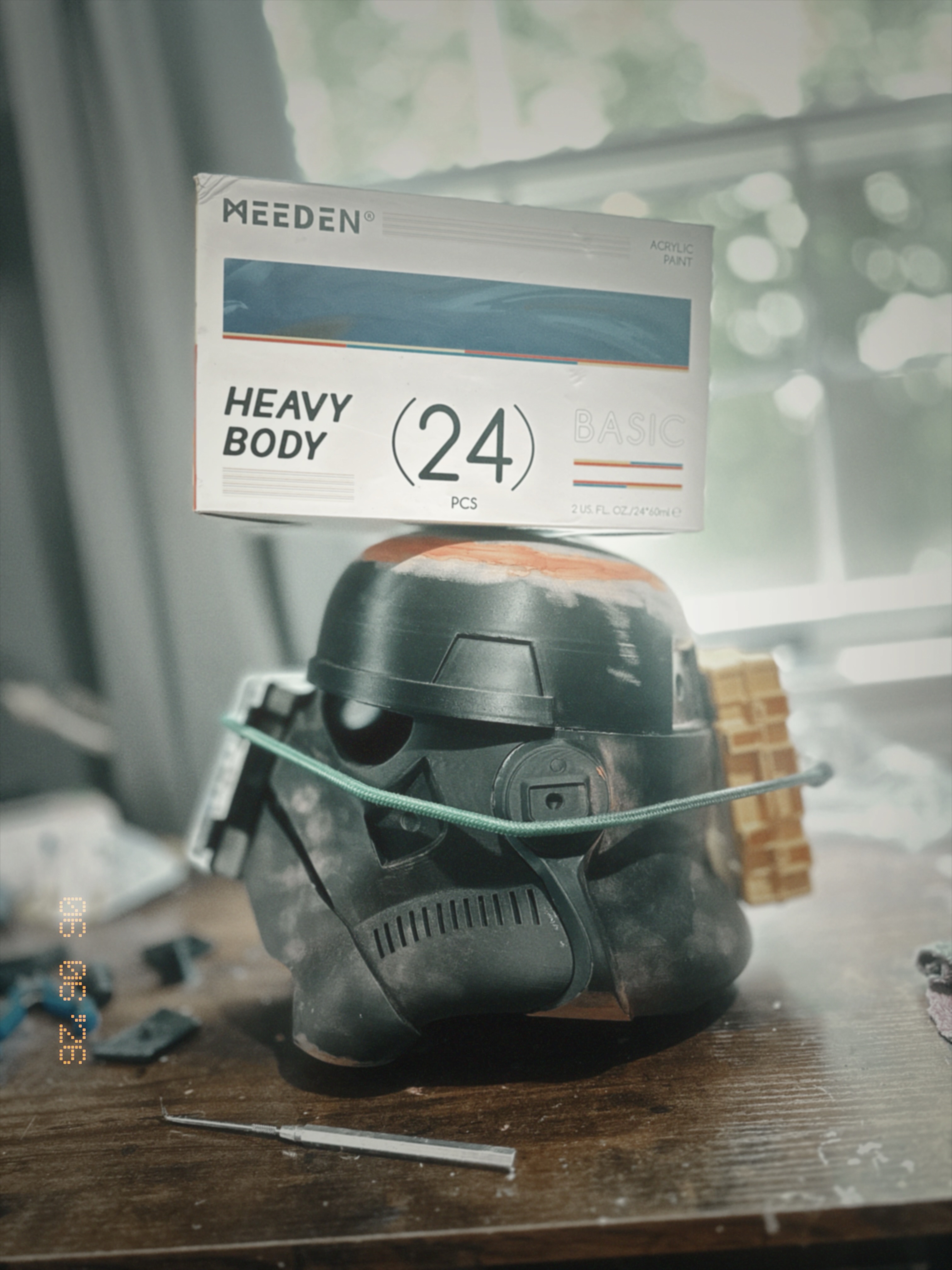

4. Clamping & Curing: For the larger connections—like joining the dome to the faceplate—I used spring clamps to maintain even pressure along the seams while the glue cured.

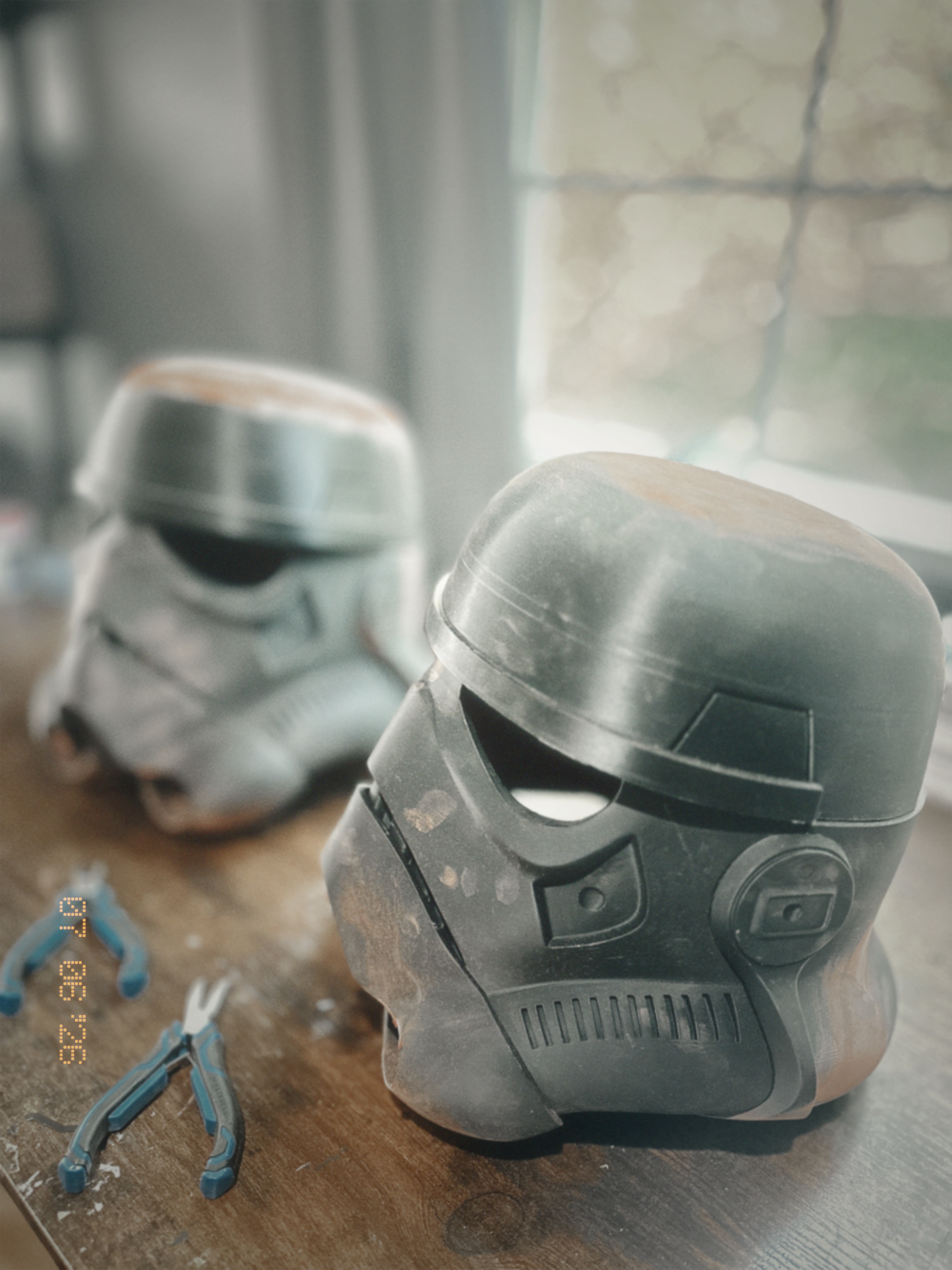

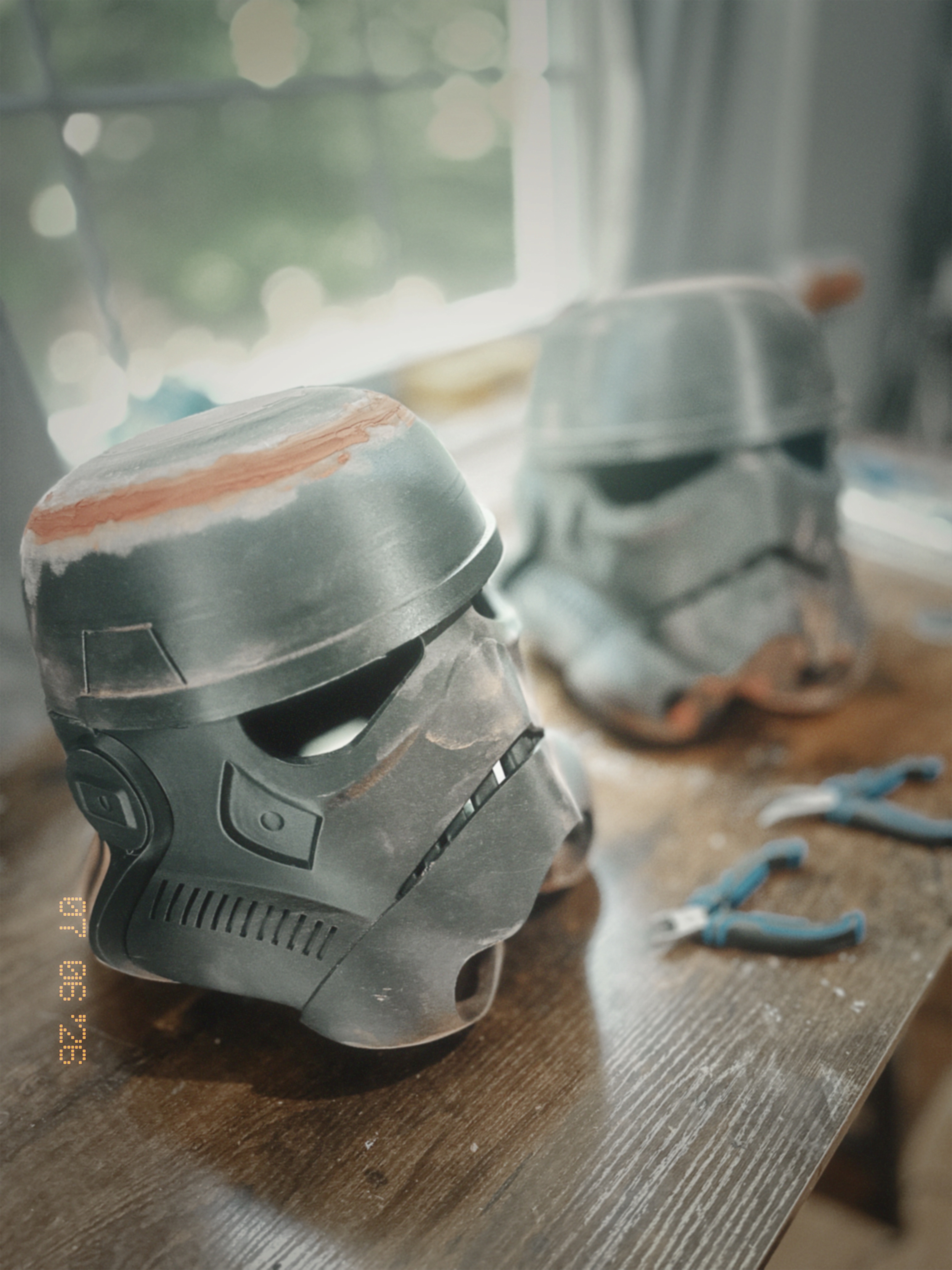

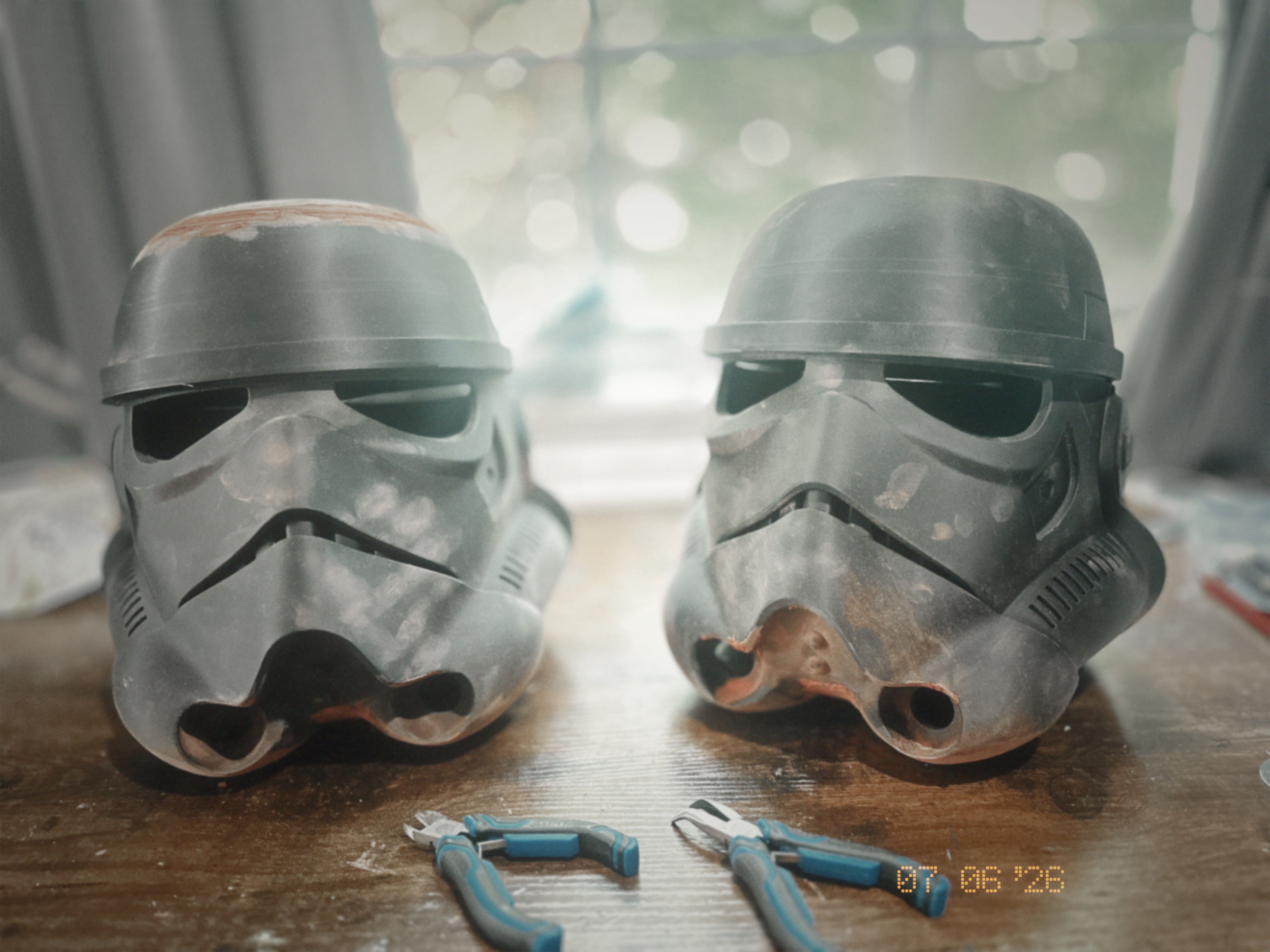

With all the main segments bonded and welded, the Stormtrooper helmet is now in one solid piece. It's raw, it's rough, and the seam lines are very obvious, but the structure is rock-solid and the shape is instantly recognizable.
What's next? The real test of a prop maker's patience: sanding, filling, priming, and more sanding.
Check out the progress photos in the gallery to see the raw pieces transform into a solid helmet shell, and stay tuned for the sanding update tomorrow!
